UL25

  • Max. working height: 9.6m
  • Overall width: 0.74m
  • Platform capacity: 159kg
  • Weight (AC): 390kg

Description

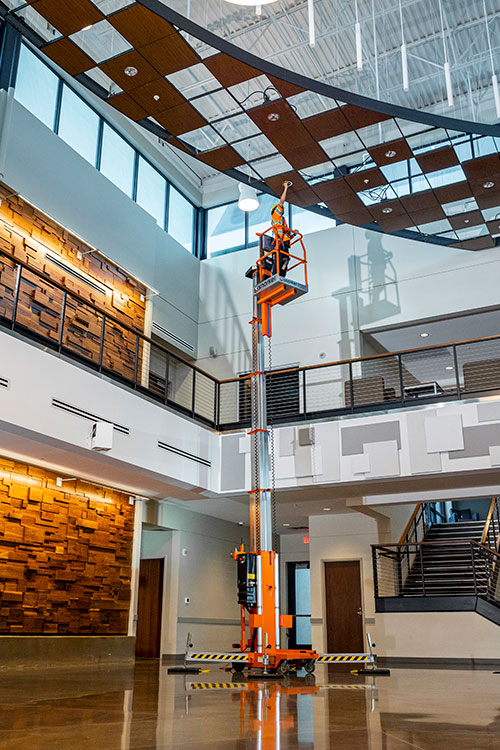

The Snorkel UL25 is a robust push-around mast lift, which safely lifts one person plus tools to a working height of 9.6m. The lift can be easily pushed to position, and can be tilted back to pass through a standard doorway.

The patented ‘Girder Lock’ telescopic mast design ensures a very stable working platform, and the lift also features an easy loader system for flatbed vehicle transport between sites.

Standard Features

  • Patented Girder Lock telescopic mast system
  • Integrated tilt-back system
  • Ground level entry
  • EZ loader system for transport
  • Outrigger interlock indicators
  • Integrated battery charger (DC only)
  • Non-marking wheels and casters
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

9.6m

Max Platform Height

7.6m

Platform Length

0.56m

Platform Width

0.66m

Outrigger Footprint

2.06m x 1.99m

Overall Width

0.74m

Overall Length

1.26m

Stowed Height

1.99m

Tilt Back Height

1.95m

Tilt Back Length

2.6m

Platform Capacity (SWL)

159kg

Max Wind Speed

0m/s

Raise/Lower Time

43/23 seconds

Wheels

250mm x 64mm rear, 150mm casters front

Controls

push button

Wall Access

356mm

Power Source (AC)

120/220V AC 50HZ

Power Source (DC)

1 X 12V 105Ah battery

Battery Charger

integrated

Weight (AC)

390kg

Weight (DC)

420kg

Options

  • Special paint colours
  • Tool tray
  • Environmental hydraulic oil
  • Laser locator

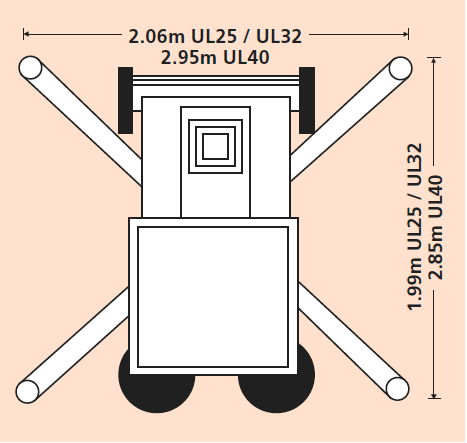

Outrigger Footprint

UL-Series-outrigger-footprint

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
