TL49J

Max. working height: 16.7m
Platform capacity: 200kg
Stowed height: 2.16m
Weight: 2,389kg

Add to quote list

Description

With an articulating/telescopic boom and jib, this is our most flexible trailer mounted boom lift designed to be incredibly robust and reliable. Bi-energy version available.

Standard Features

Hydraulic outriggers
In-line boom design for maximum rigidity
Hand pump emergency lowering from platform
Lock valves on all hydraulic cylinders
Proportional live hydraulic controls
Integral road lighting board
Power line to platform
Dual lanyard attachment points
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	16.7m
Max Platform Height	14.7m
Max Working Outreach	8.5m
Platform Width	1.14m
Platform Depth	0.7m
Outrigger Footprint	4.8m x 4.7m
Towing Width	1.72m
Towing Length	7.1m
Stowed Height	2.16m
Platform Capacity (SWL)	200kg
Max Wind Speed	12.5m/s
Jib Length	1.3m
Jib Arc	130º
Platform Rotation	90º
Turret Rotation	680° non-continuous
Wheels	205/75R16
Controls	hydraulic proportional
Power Source	24V DC battery
Battery	4 x 6V 195Ah
Power Options	dual fuel, bi-energy, AC power, petrol engine
Weight	2,389kg

Options

Special paint colours
Friction drive assist package
Work lights in platform
Flashing amber light
Airline to platform
Nylon spreader pads (set of 4)
Environmental hydraulic oil
Snorkel OnSite™ telematics

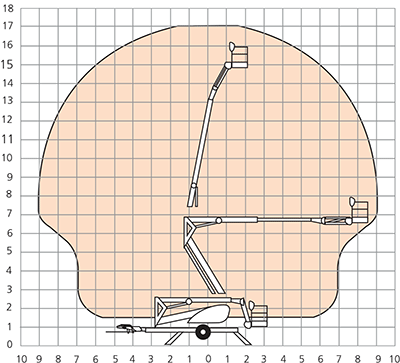

Working Envelope

TL49J-working-envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
