TB120

  • Max. working height: 38.6m
  • Platform capacity: 227kg
  • Stowed height: 3.0m
  • Weight: 17,917kg

Description

The Snorkel TB120 is a simple, reliable and robust telescopic boom lift, designed to lift up to 227kg to a working height of 38.6m. Equipped with powerful 4 wheel drive, a hydraulic extending rear axle and an envelope management system, the TB120 is the ultimate telescopic boom lift for large construction projects.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 2.0m 135  jib (TB126J only)
  • 4-wheel drive, braking & fixed front steering
  • Hydraulic platform rotation
  • 360  continuous turntable rotation
  • Hydraulic extended rear axles w/ boom interlocks
  • Built-in jack for raising chassis
  • Flashing amber light
  • Proportional drive lift, swing, extend & jib (if equipped)
  • Foam filled tyres
  • Power line to platform
  • Dual lanyard attachment points
  • 3.5  tilt alarm
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

38.6m

Max Platform Height

36.6m

Max Working Outreach

18.9m

Platform Size

2.44m x 0.91m

Overall Width

2.6m

Operational Width

3.9m

Overall Length

12.9m

Stowed Height

3.0m

Ground Clearance

330mm

Platform Capacity (SWL)

227kg

Max Drive Height

36.6m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.6 km/h

Max Drive Speed (elevated)

0.24 km/h

Jib Length

n/a

Jib Arc

n/a

Platform Rotation

150°

Turret Rotation

360° continuous

Tailswing (axles retracted)

2.04m

Tailswing (axles extended)

1.38m

Raise/Lower Time

208/215 seconds

Gradeability

30%

Inside Turning Radius

5.8m

Outside Turning Radius

10.1m

Tyres

445-65 D22.5 foam filled lug

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota V2403 48kW/65hp diesel – Tier 4 Final

Weight

17,917kg

Options

  • Special paint colours
  • Airline to platform
  • Non-marking tyres
  • AC generator 110V/24V 2kW
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • Utility package
  • 12kW generator package
  • 12kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

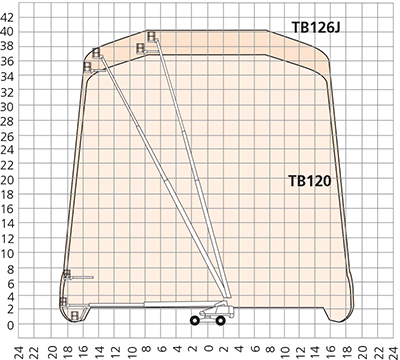

Working Envelope

TB120-TB126J-working-environment

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
