SR1745

  • Max. lift height: 16.4m
  • Max. lift capacity: 4,535kg
  • Max. forward reach: 12.6m
  • Weight: 12,180kg

Description

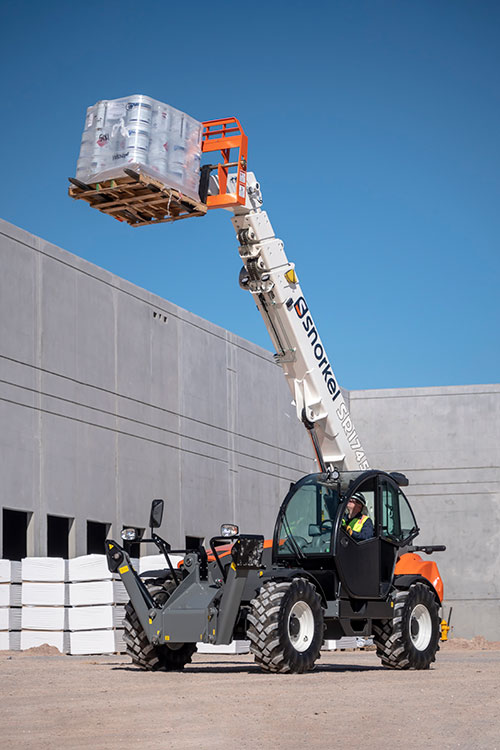

The Snorkel SR1745 rough terrain telehandler is built powerful. Delivering maximum performance is a robust Deutz Tier 4 Final diesel engine and high quality construction. Equipped with outriggers and frame sway as standard, this telehandler stays steady in all terrains.

Standard Features

  • Full-time 4-wheel drive
  • 4-wheel steer – selectable front, crab & coordinated steering modes
  • Auxiliary hydraulic circuit on the boom
  • Variable speed hydrostatic drive
  • Fender (4)
  • Fully enclosed cab with heat
  • Proportional joystick controls
  • Adjustable suspension seat
  • Illuminated gauge & switch panels
  • Colour LCD display with machine & engine diagnostics
  • Fixed 1500mm carriage & 1500mm floating forks
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max. lift capacity

4,535kg

Max. lift height

16.4m

Max. forward reach

12.6m

Overall Width

2.3m

Stowed Height

2.56m

Length to fork face

6.6m

Wheelbase

2.95m

Ground Clearance

350mm

Max. drive speed

30km/h

Raise/Lower Time

16 / 10.8 seconds

Frame levelling

11°

Hydraulic flow (per minute)

120L

Hydraulic pressure

230bar

Hydraulic oil capacity

150L

Fuel capacity

120L

Outside Turning Radius

4.2m

Tyres

445/65 – 22.5"

Power Source

Deutz 55.4kW Stage V/Tier 4 Final diesel

Weight

12,180kg

Options

  • Special paint colours
  • Air conditioning
  • Grammer air suspension seat
  • Front & rear LED work lights (4)
  • Work lights on boom (2)
  • Heated right external mirror
  • Additional rear mirror
  • Cab front glass protection grille
  • Engine preheater 220V
  • Boom suspension & floating boom
  • Bluetooth radio, handsfree & USB socket
  • Sun curtain
  • Fixed tow hook 6 ton
  • Snorkel OnSite™ telematics

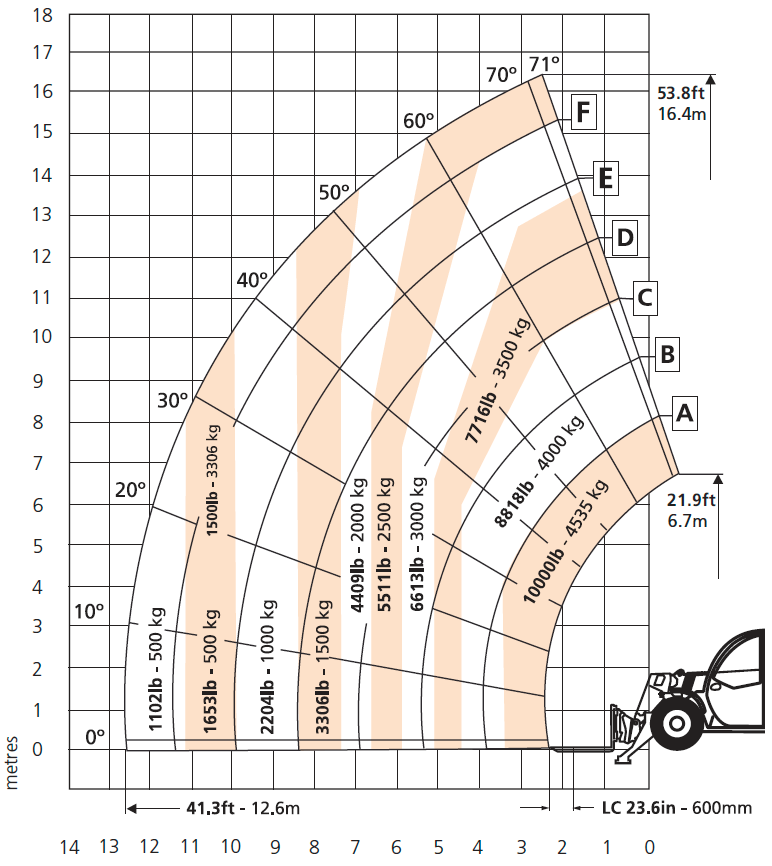

Load Chart

Snorkel Sr1745 Load Chart

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
