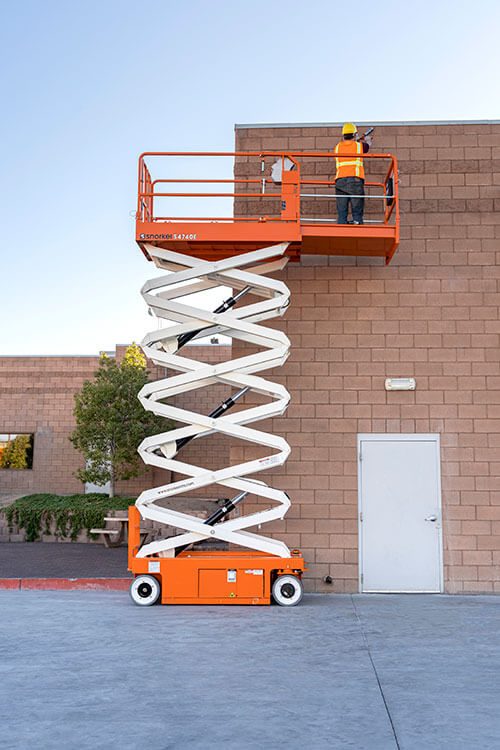

S4740E

  • Max working height: 14.0m
  • Platform capacity: 250kg
  • Stowed height: 2.56m
  • Weight: 3,100kg

Description

The Snorkel S4740E is the only Snorkel electric scissor lift with available hydraulic and electric drive. Durable lead acid batteries provide long-lasting performance. The rugged and robust S4740E features a variable tilt system suitable for indoor and outdoor use.

Standard Features

  • Hydraulic drive
  • Roll-out deck extension with dual locks
  • Non-marking tyres
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • 2 persons indoor
  • 1 person outdoor
  • Proportional controls, including descent
  • Power line to platform
  • Loading pendant
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachment points
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

14.0m

Max Platform Height

12.0m

Platform Size (stowed)

1.09m x 2.14m

Platform Size (extended)

1.09m x 3.36m

Extension Deck Length

1.21m

Overall Length (with step)

2.3m

Overall Length (without step)

2.26m

Overall Width

1.19m

Stowed Height

2.56m

Min Height (guardrails folded)

1.93m

Ground Clearance (stowed)

66mm

Ground Clearance (elevated)

19mm

Platform Capacity (SWL)

250kg

Max Drive Height

12.0m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

3.2km/h

Max Drive Speed (elevated)

0.6km/h

Raise/Lower Time

68 / 72 seconds

Gradeability

25%

Inside Turning Radius

0.53m

Outside Turning Radius

2.41m

Tyres

15 x 5 non-marking rubber

Controls

proportional

Drive System

2 wheel drive

Power Source

24V DC battery electric

Charger

90 – 240V, 25amp

Weight

3,100kg

Options

  • Special paint colours
  • Electric drive
  • Flashing amber light
  • 110V AC 800W inverter
  • Airline to platform
  • Aircraft bumpguard package
  • Environmental hydraulic oil
  • Snorkel OnSiteā„¢ telematics

Turning Radius

S4740E Turning Radius

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
