S3220E

  • Max. working height: 8.1m
  • Platform capacity: 409kg
  • Stowed height: 2.17m
  • Weight: 2,045kg

Description

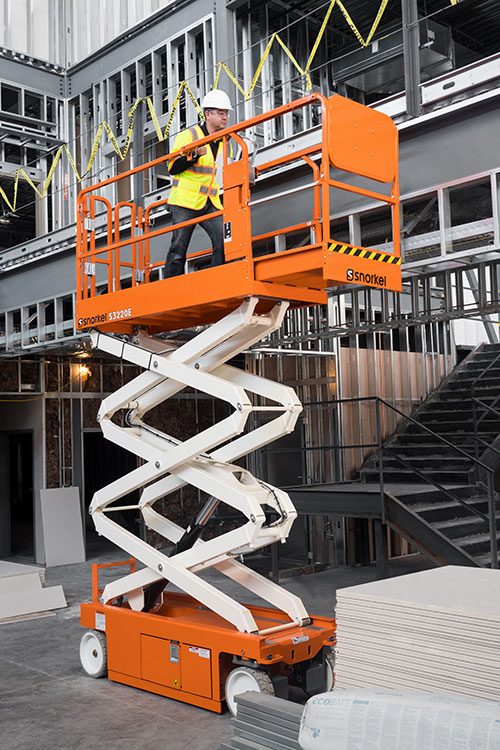

The Snorkel S3220E is a brand new 8.1m electric scissor lift from Snorkel, which is designed for the rental industry. Built to withstand the toughest conditions, the S3220E also boasts a number of innovative features to improve the operator experience and reduce maintenance time, along with a substantial 408kg lift capacity.

Standard Features

  • Roll-out deck extension with dual locks
  • Non-marking tyres
  • Loading control pendant
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • 2 persons indoor
  • 1 person outdoor (S3220E)
  • Proportional controls, including descent
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachments points
  • Flashing amber light
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

8.1m

Max Platform Height

6.1m

Platform Size (stowed)

0.72m x 2.14m

Platform Size (extended)

0.72m x 2.6m

Extension Deck Length

0.91m

Overall Length (with step)

2.3m

Overall Length (without step)

2.26m

Overall Width

0.81m

Stowed Height

2.17m

Min Height (guardrails folded)

1.72m

Ground Clearance (stowed)

66mm

Ground Clearance (elevated)

19mm

Platform Capacity (SWL)

409kg

Max Drive Height

6.1m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

3.2 km/h

Max Drive Speed (elevated)

0.6 km/h

Raise/Lower Time

34 / 43 sec

Gradeability

25%

Inside Turning Radius

0.76m

Outside Turning Radius

2.36m

Tyres

15 x 4 non-marking rubber

Controls

proportional

Drive System

2 wheel drive

Power Source

24V DC battery electric

Charger

90 – 240V, 25amp

Weight

2,045kg

Options

  • Special paint colours
  • Snorkel Guard™ secondary guarding system
  • Snorkel OnSite™ telematics
  • Environmental hydraulic oil
  • Airline to platform
  • Aircraft bumpguard package
  • Panel carrier (S3220E)
  • Top rail

Turning Radius

S3220E-S3226E-turning-radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
