S3215L

Max. working height: 6.6m
Platform capacity: 305kg
Stowed height: 1.9m
Weight: 955kg

Add to quote list

Description

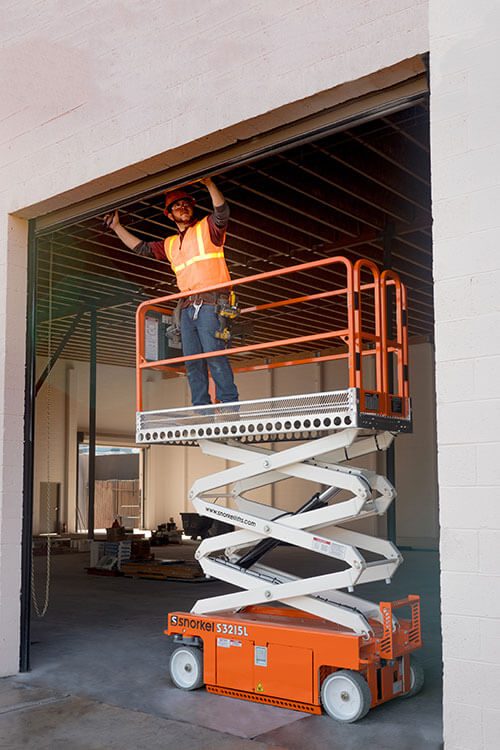

The Snorkel S3215L is a lightweight electric scissor lift. This heavy duty lightweight machine features a reduced weight while maintaining durability. A fixed aluminum platform offers more space in a lighter construction for indoor and outdoor jobsites with floor load restrictions.

Standard Features

Aluminium platform
Non-marking tyres
Swing-out service trays
Saloon-door style entry gates
Descent alarm
All motion alarm
2 persons indoor
1 person outdoor
Proportional controls, including descent
Power line to platform
Loading control pendant
Hour meter & on-board diagnostics display
Integrated battery charger
Battery condition indicator
Flashing amber light
Crane & forklift points
Dual lanyard attachments points
Scissor stack roller slide plates (set of 2)
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	6.6m
Max Platform Height	4.6m
Platform Size	0.68m x 1.9m
Overall Length (with step)	2.1m
Overall Length (without step)	2.0m
Overall Width	0.81m
Stowed Height	1.9m
Ground Clearance (stowed)	66mm
Ground Clearance (elevated)	19mm
Platform Capacity (SWL)	305kg
Max Wind Speed	12.5m/s
Max Drive Height	4.6m
Max Drive Speed (stowed)	3.2 km/h
Max Drive Speed (elevated)	0.6 km/h
Raise/Lower Time	20/38 seconds
Gradeability	25%
Inside Turning Radius	0.1m
Outside Turning Radius	1.63m
Tyres	12 x 4 non-marking solid rubber
Controls	proportional
Drive System	2 wheel drive
Power Source	24V DC battery electric
Charger	90 – 240V, 25amp
Weight	955kg
Floor load at max. capacity	951.9kg/m

Options

Special paint colours
Snorkel Guard™ secondary guarding system
Airline to platform
Aircraft bumpguard package
Environmental hydraulic oil
Inverter
Snorkel OnSite™ telematics

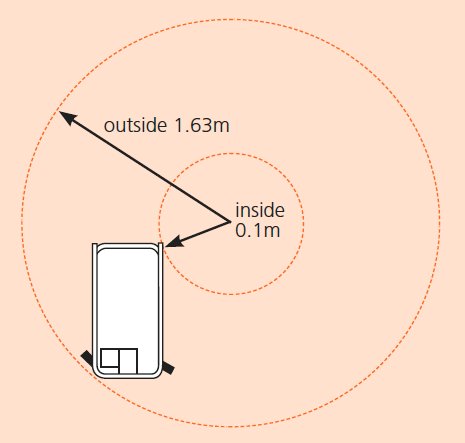

Turning Radius

S3215L Turning Radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
