S3010P

  • Max. working height: 5.0m
  • Platform capacity: 240kg
  • Stowed height: 1.8m
  • Weight: 370kg

Description

The Snorkel S3010P is an innovative push-around mini scissor lift, which provide a cost-effective way to safely work at low level heights indoors.

Designed to withstand the demands of construction sites and the rental industry, the Snorkel S3010P is a heavy-duty and robust mini scissor lift, which is easy to use and simple to maintain. The S3010P can lift 240kg to a working height of 5.0m.

Standard Features

  • Auto brake system
  • Tilt sensor
  • Saloon-door style entry gates
  • Integrated battery charger 90V-240V
  • Battery charge indicator
  • Forklift pockets
  • Emergency lowering system
  • Non-marking casters
  • Slide-out service trays
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

5.0m

Max Platform Height

3.0m

Platform size (outside)

1.1m x 0.52m

Overall Width

0.75m

Overall Length

1.2m

Stowed Height

1.8m

Platform Capacity (SWL)

240kg

Max Wind Speed

0m/s

Raise/Lower Time

19/26 seconds

Power Source

12V DC battery

Charger

Built in multi-voltage (90V – 240V)

Weight

370kg

Options

  • Special paint colours
  • Environmental hydraulic oil
  • Snorkel OnSiteā„¢ telematics

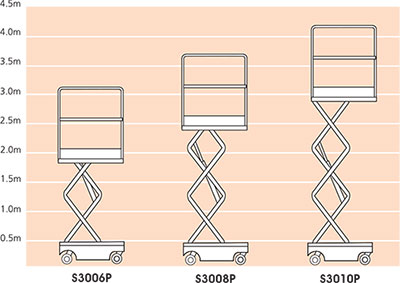

Platform Heights

S3006P---S3008P---S3010P-platform-heights

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
