S2770BE

  • Max. working height: 10.1m
  • Platform capacity: 580kg
  • Stowed height: 2.61m
  • Weight: 3,186kg

Description

The Snorkel S2770BE is a compact scissor lift that can be operated on either its diesel engine for outdoor rough terrain work, or switched to DC electric for working indoors. Fitted with high grip, non-marking types as standard, the S2770BE provides the ultimate in jobsite flexibility.

Standard Features

  • DC and diesel power – for indoor & outdoor work
  • 4-wheel drive
  • 4 hydraulic outriggers with automatic levelling
  • Roll-out deck extension
  • Non-marking tyres
  • Proportional controls
  • Flashing amber light
  • Oscillating axle
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Hour meter & on-board diagnostics display
  • Dual lanyard attachment points
  • Manual lowering valve
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

10.1m

Max Platform Height

8.1m

Platform Size (stowed)

1.6m x 2.8m

Platform Size (extended)

1.6m x 4.0m

Extension Deck Length

1.2m

Overall Width

1.8m

Overall Length

3.4m

Stowed Height

2.61m

Min Height (guardrails folded)

1.83m

Ground Clearance

330mm

Platform Capacity (SWL)

580kg

Max Drive Height

8.1m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.5km/h

Max Drive Speed (elevated)

0.5km/h

Raise/Lower Time

26/30 seconds

Gradeability

25%

Max Outrigger Leveling (front to rear)

Max Outrigger Leveling (side to side)

10º

Inside Turning Radius

2.7m

Outside Turning Radius

5.0m

Tyres

27 x 10.5 foam filled, non-marking

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota D-902 water cooled diesel 22.5 hp – Tier 4 Final & 4 x 6v 305Ah batteries

Weight

3,186kg

Options

  • Special paint colours
  • Hydraulic generator 110V/240V
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package
  • Snorkel OnSite™ telematics

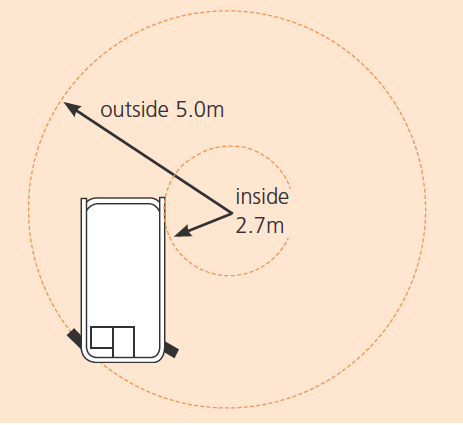

Turning Radius

S2770BE-S3370BE-S3970BE-turning-radius

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
