S2755RT

  • Max. working height: 10.1m
  • Platform capacity: 300kg
  • Stowed height: 2.5m
  • Weight: 2,750kg

Description

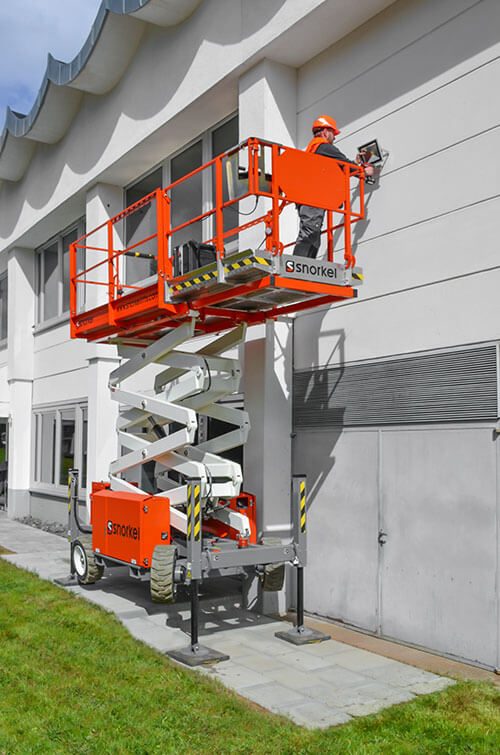

The Snorkel S2755RT is a narrow diesel scissor platform that provides excellent off-road performance. Thanks to the slim dimensions, it is ideally suited for access to and use in narrow areas of work. More platform space and additional reach are available via a roll-out platform extension

Standard Features

  • 4-wheel drive
  • 4 hydraulic outriggers with automatic levelling
  • Roll-out deck extension
  • Proportional controls
  • Non-marking tyres
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Manual lowering valve
  • Flashing amber light
  • Dual lanyard attachment points
  • Oscillating axle
  • Hour meter
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

10.1m

Max Platform Height

8.1m

Platform Size (stowed)

1.4m x 2.73m

Platform Size (extended)

1.4m x 3.93m

Extension Deck Length

1.2m

Overall Width

1.45m

Overall Length

3.3m

Stowed Height

2.5m

Min Height (guardrails folded)

2.13m

Ground Clearance

260mm

Platform Capacity (SWL)

300kg

Max Drive Height

7.8m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

5.2km/h

Max Drive Speed (elevated)

0.5km/h

Raise/Lower Time

26/30 seconds

Gradeability

35%

Max Outrigger Leveling (front to rear)

Max Outrigger Leveling (side to side)

10º

Inside Turning Radius

2.5m

Outside Turning Radius

4.75m

Exit/entry angle

20°

Tyres

0.58m x 0.22m – 12 non-marking

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota diesel engine

Weight

2,750kg

Options

  • Special paint colours
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package
  • Snorkel OnSite™ telematics

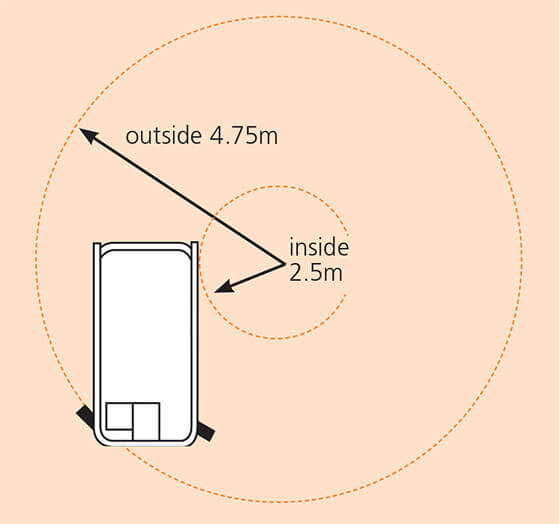

Turning Radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
