ML5I

Lift height–forks up: 2.0m
Lift height–forks down: 1.4m
Stowed height: 1.9m
Weight: 89kg

Add to quote list

Description

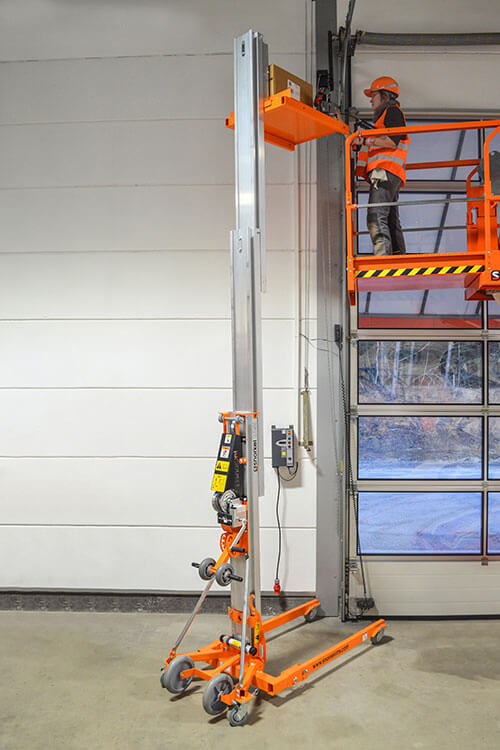

The ML5I industrial material lift is steadily strong for lifting heavy loads. This high specification lift offers a heavy-duty load capacity and a dual-handle, shift-on-the-fly, two-speed winch for faster loading. Its robust, industrial grade construction can handle the toughest jobsites.

Standard Features

Mast brake
Cable guard
Non-marking transport/loading wheels
Dual-handle, two-speed shift-on-fly winch
Metal cable pulleys with sealed bearings
Heavy-gauge aluminium extrusions
Heavy duty, non-marking casters
Crane attachment point
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Lift height – forks up	2.0m
Lift height – forks down	1.4m
Stowed width	0.77m
Stabiliser width	1.63m
Stowed Length	0.85m
Operating length	1.57m
Stowed Height	1.9m
Fork width (outside)	0.58m
Fork length	0.76m
Ground Clearance	60mm
Max. load capacity (0.36m load centre)	454kg
Max. load capacity (0.61m load centre)	340kg
Max. load capacity (1.07m load centre)	159kg
Min. load height	150mm
Winch (high speed)	13.1 cranks/m
Winch (low speed)	49.2 cranks/m
Weight	89kg

Options

Special paint colours
Adjustable forks
Boom
Pipe cradle
Fork extensions
Load platform
Stabilisers with non-marking swivel casters
Straddle base
Smart latch

Loading Capacity

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
