ML12M

  • Lift height–forks up: 3.8m
  • Lift height–forks down: 3.3m
  • Stowed height: 1.59m
  • Weight: 120kg

Description

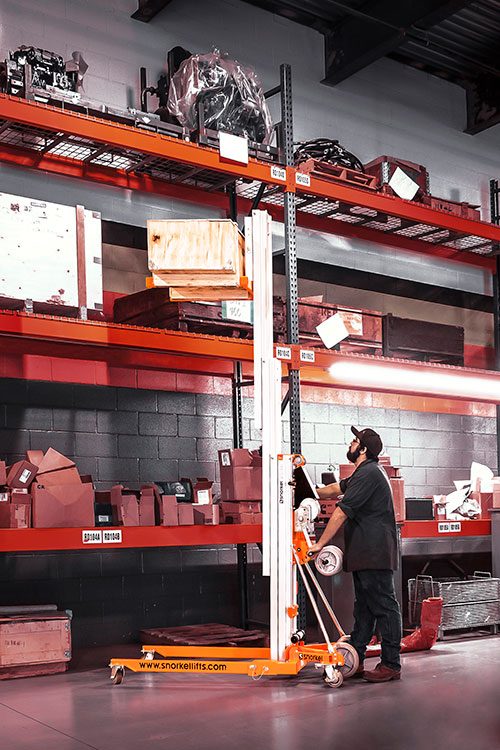

The Snorkel ML12M mini material lift is up to the task. Featuring a shorter mast, this lift easily fits through interior doorways. Built with durable aluminum, the ML12M is robust and reliable for industrial and warehouse applications.

Standard Features

  • Stabilisers with non-marking swivel casters (ML20M)
  • Non-marking transport/loading wheels
  • Cable guard
  • Mast brake
  • Dual-handle, two-speed shift-on-the-fly winch
  • Metal cable pulleys with sealed bearings
  • Heavy-gauge aluminium extrusions
  • Heavy duty, non-marking casters
  • Crane attachment point
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Lift height – forks up

3.8m

Lift height – forks down

3.3m

Stowed width

0.77m

Stabiliser width

1.63m

Stowed Length

0.84m

Operating length

1.72m

Stowed Height

1.59m

Fork width (outside)

0.58m

Fork length

0.76m

Ground Clearance

60mm

Max. load capacity (0.36m load centre)

318kg

Max. load capacity (0.61m load centre)

200kg

Max. load capacity (1.07m load centre)

84kg

Min. load height

150mm

Winch (high speed)

13.1 cranks/m

Winch (low speed)

49.2 cranks/m

Weight

120kg

Options

  • Special paint colours
  • Adjustable forks
  • Boom
  • Pipe cradle
  • Fork extensions
  • Load platform
  • Stabilisers with non-marking swivel casters (ML12M/ML16M)
  • Smart latch

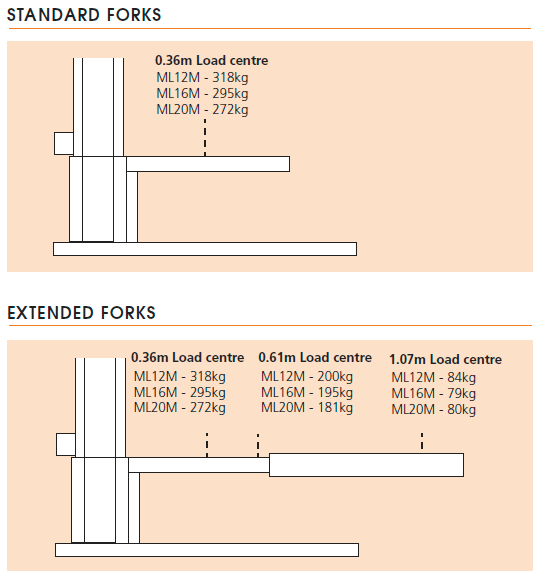

Loading Capacity

Snorkel ML12M/ML16M/ML20M Load Capacity

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
