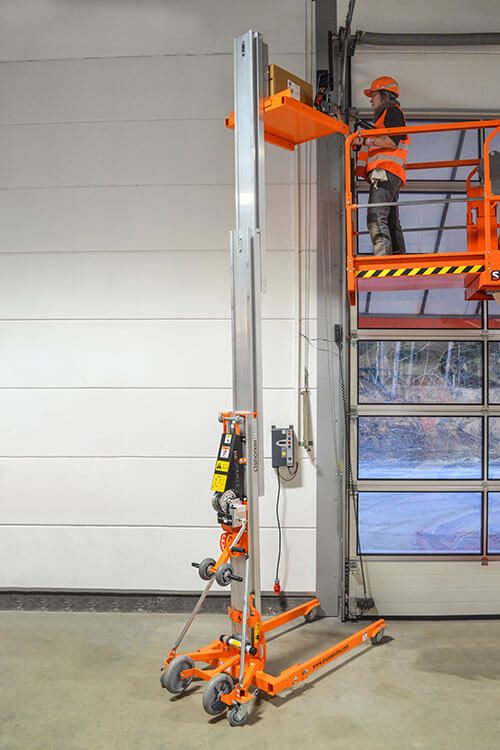

ML10I

  • Lift height–forks up: 3.4m
  • Lift height–forks down: 2.7m
  • Stowed height: 1.9m
  • Weight: 106kg

Description

The ML10I industrial material lift is built to handle the work. Designed narrow to manoever through standard doorways without tilting back, this material lift is also robust for heavy-duty applications. For improved productivity, it is equipped with a dual handle, shift-on-the-fly, two-speed winch.

Standard Features

  • Mast brake
  • Cable guard
  • Non-marking transport/loading wheels
  • Dual-handle, two-speed shift-on-fly winch
  • Metal cable pulleys with sealed bearings
  • Heavy-gauge aluminium extrusions
  • Heavy duty, non-marking casters
  • Crane attachment point
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Lift height – forks up

3.4m

Lift height – forks down

2.7m

Stowed width

0.77m

Stabiliser width

1.63m

Stowed Length

0.85m

Operating length

1.57m

Stowed Height

1.9m

Fork width (outside)

0.58m

Fork length

0.76m

Ground Clearance

60mm

Max. load capacity (0.36m load centre)

408kg

Max. load capacity (0.61m load centre)

340kg

Max. load capacity (1.07m load centre)

159kg

Min. load height

150mm

Winch (high speed)

13.1 cranks/m

Winch (low speed)

49.2 cranks/m

Weight

106kg

Options

  • Special paint colours
  • Adjustable forks
  • Boom
  • Pipe cradle
  • Fork extensions
  • Load platform
  • Stabilisers with non-marking swivel casters
  • Straddle base
  • Smart latch

Loading Capacity

Snokrel ML5I/ML10I/ML15I Load Capacity

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
