AB80J

Max. working height: 26.3m
Platform capacity: 227kg
Stowed height: 3.0m
Weight: 16,692kg

Add to quote list

Description

The Snorkel AB80J is the ultimate diesel articulated boom lift. Capable of lifting 227kg to a working height of 26.4m, the AB80J delivers excellent aerial maneuverability with ‘up and over’ capabilities and a jib boom. In addition, the AB80J has impressive rough terrain performance, boasting both 4 wheel drive and 4 wheel steer, including crab steer.

Standard Features

Snorkel Guard™ secondary guarding system
Hydraulic platform rotation
4-wheel drive
4-wheel steer, including crab steer
Proportional drive, lift & swing, extend & rotate
Foam filled tyres
Power line to platform
Dual lanyard attachment points
Drive motion alarm
3.5º tilt alarm
Flashing amber light
Horn
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	26.3m
Max Platform Height	24.3m
Max Working Outreach	18.1m
Clearance Height at Max Outreach	8.5m
Platform Size	0.91m x 2.44m
Overall Width	2.6m
Overall Length	9.8m
Stowed Height	3.0m
Ground Clearance	330mm
Platform Capacity (SWL)	227kg
Max Drive Height	24.3m
Max Wind Speed	12.5m/s
Max Drive Speed (stowed)	4.8 km/h
Max Drive Speed (elevated)	1.0 km/h
Jib Length	1.5m
Jib Arc	140º (+70º/-70º)
Jib Rotation	n/a
Platform Rotation	150º
Raise/Lower Time	240/240 seconds
Tailswing	0.89m
Turret Rotation	360° continuous
Gradeability	30%
Inside Turning Radius	2.4m
Outside Turning Radius	4.7m
Tyres	15 x 625 foam filled loader
Controls	proportional joystick
Drive System	4 wheel drive
Power Source	Kubota V2403 48kW/65hp diesel – Tier 4 Final
Weight	16,692kg

Options

Special paint colours
AC generator 110V/240 2kW
Non-marking tyres
Airline to platform
Aircraft package
Deluxe aircraft package
Cold weather package
Extreme cold weather package
Extreme environment package
Light package
Tow kit
Glazier package
Utility package
12kW generator package
12kW generator/welder package
Environmental hydraulic oil
Pipe rack
Snorkel OnSite™ telematics

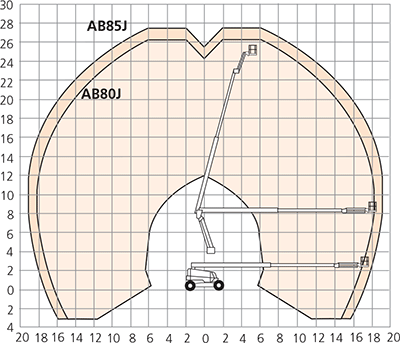

Working Envelope

AB80J-AB85J-working-environment

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
