A46JRTE

Max. working height: 16.3m
Platform capacity: 227kg
Stowed height: 2.16m
Weight: 7,540kg

Add to quote list

Description

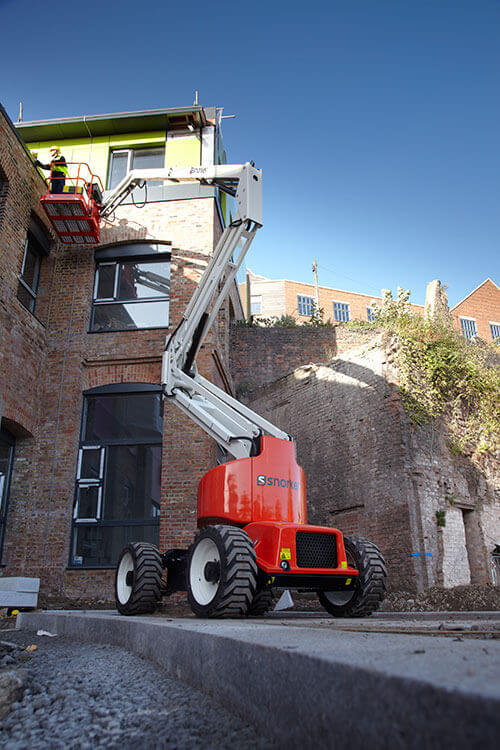

The electric version of the Snorkel A46JRT articulating boom lift, the A46JRTE offers clean performance and quiet operation from lithium-ion batteries. This fully electric model delivers the same rough terrain capability from battery power. Designed to be versatile, the A46JRTE has superb maneuverability and can work indoors.

Standard Features

Three lithium-ion battery systems 17.25kWh
Snorkel Guard™ secondary guarding system
Tri-entry platform
Drive motion alarm
Multi-function proportional controls
Oscillating front axle
Power line to platform
Zero tailswing
Hour meter & on-board diagnostics display
Non-marking foam filled tyres
2000 charging cycles/2 year** lithium battery warranty
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	16.3m
Max Platform Height	14.3m
Max Working Outreach	7.35m
Clearance Height at Max Outreach	7.67m
Platform Size	1.0m x 1.83m
Chassis Width	2.1m
Overall Length	5.7m
Stowed Height	2.16m
Ground Clearance	330mm
Platform Capacity (SWL)	227kg
Max Drive Height	14.3m
Max Wind Speed	12.5m/s
Max Drive Speed (stowed)	6.8km/h
Max Drive Speed (elevated)	1.3km/h
Jib Length	1.5m
Jib Arc	140º
Platform Rotation	160º
Turret Rotation	360º non-continuous
Tailswing	0m
Raise/Lower Time	101/98 seconds
Gradeability	45%
Inside Turning Radius	0.8m
Outside Turning Radius	3.1m
Tyres	High grip, foam-filled 355/55D625NHS 17.5
Controls	proportional
Drive System	4 wheel drive
Power Source	17.25kWh Li-ion batteries with integrated BMS
Operating temperature	(-) 25ºC to (+) 60ºC
Charger	high frequency smart on-board 50A battery charger
Motor	AC electric motor
Weight	7,540 kg

Options

Special paint colours
Airline to platform
Additional 5.75kWh battery system
1.52m aluminium platform with swing gate
Environmental hydraulic oil
Tool tray
Aircraft package
Deluxe aircraft package
Extreme environment package
Light package
Utility package
Snorkel OnSite™ telematics

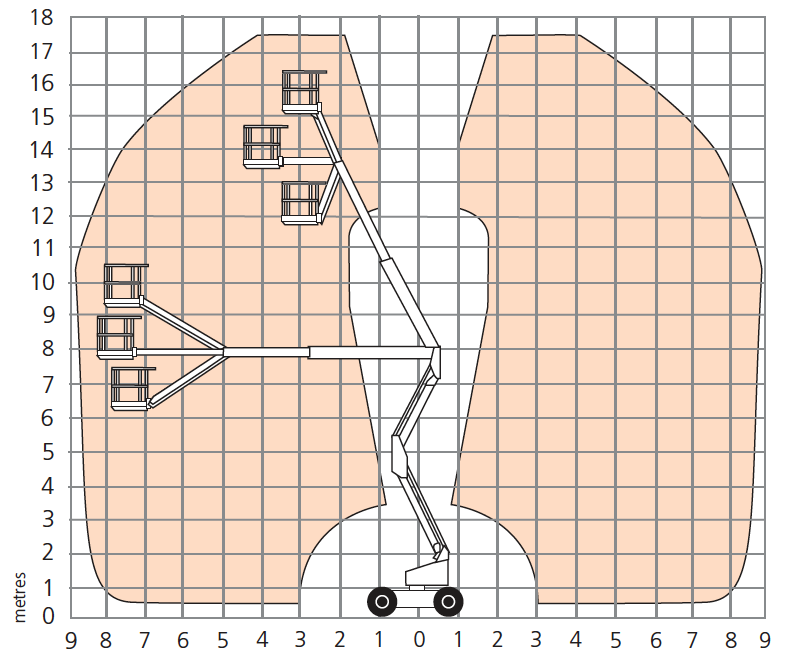

Working Envelope

Snorkel A46jrte Working Envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.
