A38E

  • Max. working height: 13.5m
  • Platform capacity: 215kg
  • Stowed height: 2.0m
  • Weight: 3,880kg

Description

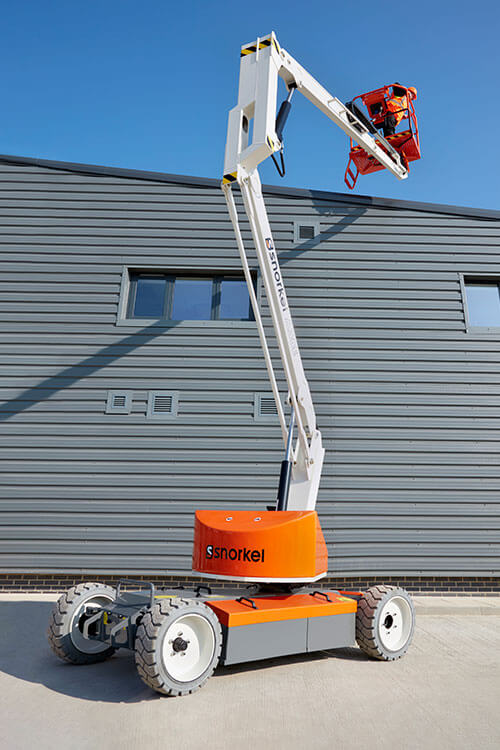

The class-leading Snorkel A38E is a lightweight, durable and reliable electric articulated boom lift. Designed for internal and external use, this lift benefits from compact dimensions and an articulating/telescopic boom configuration for maximum maneuverability and versatility.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Proportional one-handed controls
  • Hydraulic platform rotation
  • Minimal front boom overhang
  • Ultra-tight inside turning radius
  • Power line to platform
  • Tilt alarm and cut-out
  • 2 person indoor
  • 1 person outdoor
  • Direct DC drive series wired wheel motors
  • Non-marking tyres
  • Duplicate boom controls at ground level
  • Hour meter & on-board diagnostics display
  • Flashing amber light
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

13.5m

Max Platform Height

11.5m

Max Working Outreach

6.1m

Clearance Height at Max Outreach

5.4m

Platform Size

0.69m x 1.11m

Overall Width

1.5m

Overall Length

4.1m

Stowed Height

2.0m

Ground Clearance

120mm

Platform Capacity (SWL)

215kg

Max Drive Height

11.5m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.0m/h

Max Drive Speed (elevated) Forward

0.5km/h

Max Drive Speed (elevated) Reverse

0.4 km/h

Platform Rotation

90º (+45º/-45º)

Turret Rotation

360º non-continuous

Tailswing (elevated)

0m

Tailswing (stowed)

1.4m

Raise/Lower Time

83/68 sec

Gradeability

36%

Inside Turning Radius

1.12m

Outside Turning Radius

2.4m

Tyres

22 x 9 16 non-marking rubber

Controls

proportional

Drive System

direct drive DC

Power Source

8 x 6V, 220Ah batteries

Battery Charger

100-200V/15A

Weight

3,880kg

Options

  • Special paint colours
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

Working Envelope

A38E-working-envelope

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
