660SJ

  • Max. working height: 22.0m
  • Platform capacity: 272kg
  • Stowed height: 2.51m
  • Weight: 12,982kg

Description

The Snorkel 660SJ is the largest of the new Snorkel diesel mid-size telescopic boom lift family, featuring powerful constant four wheel drive and a fixed axle for excellent rough terrain performance. Equipped with Snorkel’s new removeable tri-entry platform designed for fast replacement, and a 2.0m jib boom, this all-steel lift features Snorkel Guard™ secondary guarding system as standard. Ideal for construction and industrial applications.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 1.67m 135º jib (660SJ)
  • Oscillating axle (203mm of oscillation)
  • Hydraulic platform rotation
  • 4-wheel drive
  • All proportional controls
  • Swing-out engine tray
  • Power line to platform
  • Tilt alarm & cut-out
  • DC emergency operation
  • Hydraulic oil cooler
  • Tri-entry platform
  • Flashing amber light
  • Hour meter & on-board diagnostic display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

22.0m

Max Platform Height

20.0m

Max Working Outreach

17.7m

Platform Size

2.44m x 0.91m

Transport width

2.24m

Overall Width

2.46m

Transport Length

8.3m

Overall Length

10.1m

Transport Height

2.9m

Stowed Height

2.51m

Ground Clearance

340mm

Platform capacity - unrestricted

272kg

Platform capacity - restricted

454kg

Max Drive Height

20.0m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

5.6 km/h

Max Drive Speed (elevated)

0.96 km/h

Jib Length

1.67m

Jib Arc

135º (+70º/-65º)

Platform Rotation

150º

Turret Rotation

360° continuous

Raise/Lower Time

50 / 50 sec

Tailswing

1.2m

Gradeability

45%

Inside Turning Radius

3.06m

Outside Turning Radius

5.21m

Tyres

355/55 D625 foam filled lug

Controls

Proportional drive, raise, slew, extend, jib & platform rotate

Drive System

4 wheel drive

Power Source

Cummins 65hp (47.8kW) turbo diesel, Deutz T4F, stage V

Auxillary Power Unit

12V DC

Weight

12,982kg

Options

  • Special paint colours
  • Airline to platform
  • Non-marking tyres
  • Dual fuel
  • AC generator 110V/220V 2.5kW
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • 10kW generator package
  • 10kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

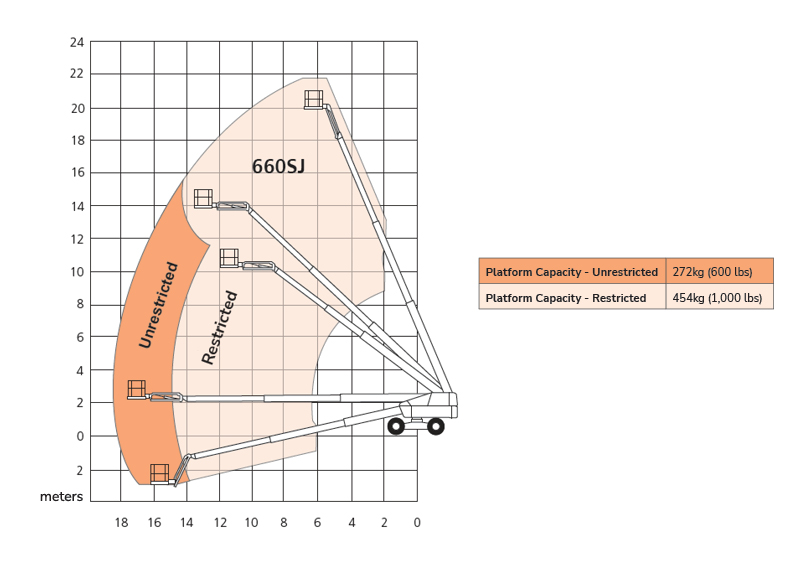

Working Envelope

Emea Metric 600sj 72dpi

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
