660SJ All Terrain

  • Max. working height: 22.1m
  • Platform capacity: 272kg
  • Stowed height: 2.61m
  • Weight: 13,750kg

Description

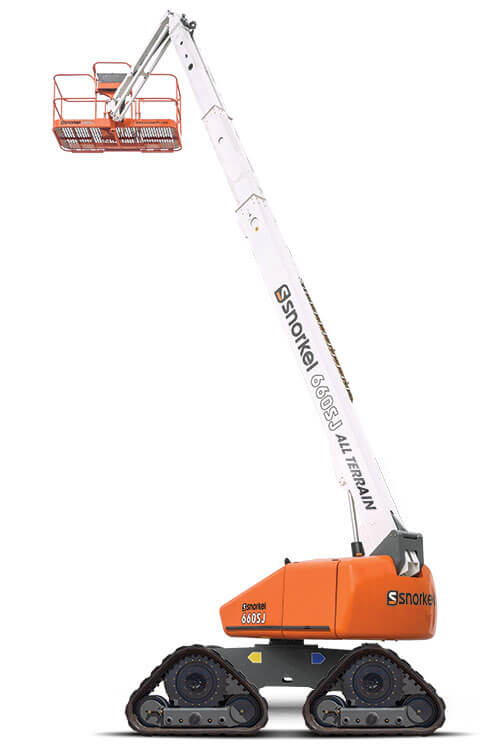

The Snorkel 660SJ All Terrain telescopic boom lift offers enhanced traction. Turf-friendly independent rubber tracks can traverse uneven terrain without sinking into loose sediment, soft soil, sand, snow and mud. Designed with full-time active oscillating axle, the 660SJ All Terrain delivers smooth performance and low ground pressure on sensitive environments.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 1.67m 135º jib (660SJ)
  • Oscillating axle (203mm of oscillation)
  • Hydraulic platform rotation
  • 4-track drive
  • All proportional controls
  • Swing-out engine tray
  • Power line to platform
  • Tilt alarm & cut-out
  • DC emergency operation
  • Hydraulic oil cooler
  • Tri-entry platform
  • Flashing amber light
  • Hour meter & onboard diagnostic display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

22.1m

Max Platform Height

20.1m

Max Working Outreach

17.8m

Platform Size

2.44m x 0.91m

Transport width

2.24m

Overall Width

2.46m

Transport Length

8.3m

Overall Length

10.1m

Transport Height

3.0m

Stowed Height

2.61m

Ground Clearance

444mm

Platform capacity - unrestricted

272kg

Platform capacity - restricted

454kg

Max Drive Height

20.1m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

5.6 km/h

Max Drive Speed (elevated)

0.96 km/h

Jib Length

1.67m

Jib Arc

135º (+70º/-65º)

Platform Rotation

150º

Turret Rotation

360° continuous

Raise/Lower Time

50 / 50 sec

Tailswing

1.2m

Gradeability

45%

Inside Turning Radius

5.94m

Outside Turning Radius

8.38m

Tyres

Independent rubber tracks

Controls

Proportional drive, raise, slew, extend, jib & platform rotate

Drive System

4 track drive

Power Source

Deutz 2.9L 55kW/74hp – Stage V

Auxillary Power Unit

12V DC

Weight

13,750kg

Options

  • Special paint colours
  • Airline to platform
  • Non-marking tyres
  • AC generator 110V/220V 2.5kW
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Glazier package
  • 10kW generator package
  • 10kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

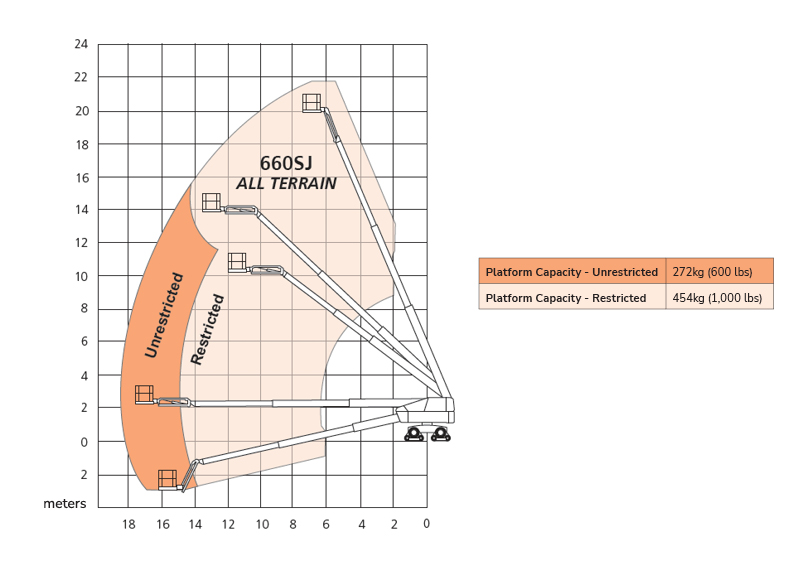

Working Envelope

Emea Metric 660sj At 72dpi

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
