460SJ

  • Max. working height: 16.0m
  • Platform capacity: 272kg
  • Stowed height: 2.38m
  • Weight: 7,829kg

Description

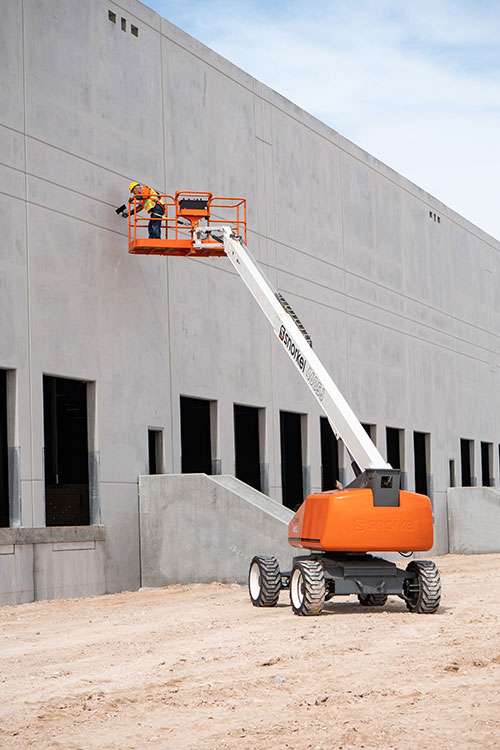

The new Snorkel 460SJ is a diesel mid-size telescopic boom lift, which features powerful constant four wheel drive and a fixed axle for excellent rough terrain performance. Equipped with Snorkel’s new removeable tri-entry platform designed for fast replacement, and a 2.0m jib boom, this all-steel lift features Snorkel Guard™ secondary guarding system as standard. Ideal for construction and industrial applications.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 1.67m 135º jib (460SJ)
  • Oscillating axle
  • Hydraulic platform rotation
  • 4-wheel drive
  • All proportional controls
  • Swing-out engine tray
  • Hydraulic oil cooler
  • Hour meter & on-board diagnostics display
  • Power line to platform
  • Tilt alarm & cut-out
  • DC emergency operation
  • Tri-entry platform
  • Flashing amber light
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

16.0m

Max Platform Height

14.0m

Max Working Outreach

12.3m

Platform Size

2.44m x 0.91m

Overall Width

2.31m

Transport width

2.08m

Overall Length

8.6m

Transport Length

6.81m

Stowed Height

2.38m

Transport Height

2.92m

Ground Clearance

320mm

Platform capacity - unrestricted

272kg

Platform capacity - restricted

454kg

Max Drive Height

14.0m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

6.8km/h

Max Drive Speed (elevated)

1.0km/h

Jib Length

1.67m

Jib Arc

135º (+70º/-65º)

Platform Rotation

150º

Turret Rotation

360° continuous

Tailswing

0.9m

Raise/Lower Time

64/64 seconds

Gradeability

50%

Inside Turning Radius

3.0m

Outside Turning Radius

5.06m

Tyres

355/55 D625 foam filled lug

Controls

Proportional drive, raise, slew, extend, jib & platform rotate

Drive System

4 wheel drive

Power Source

Kubota 18.6kW (24.9hp) diesel – Stage V

Auxillary Power Unit

12V DC

Weight

7,829kg

Options

  • Special paint colours
  • Airline to platform
  • Air-filled flotation tyres
  • Pipe rack
  • Non-marking tyres
  • Dual fuel
  • AC generator 110V/240V 2kW
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • 7.5kW generator package
  • Environmental hydraulic oil
  • Tool tray
  • Snorkel OnSite™ telematics

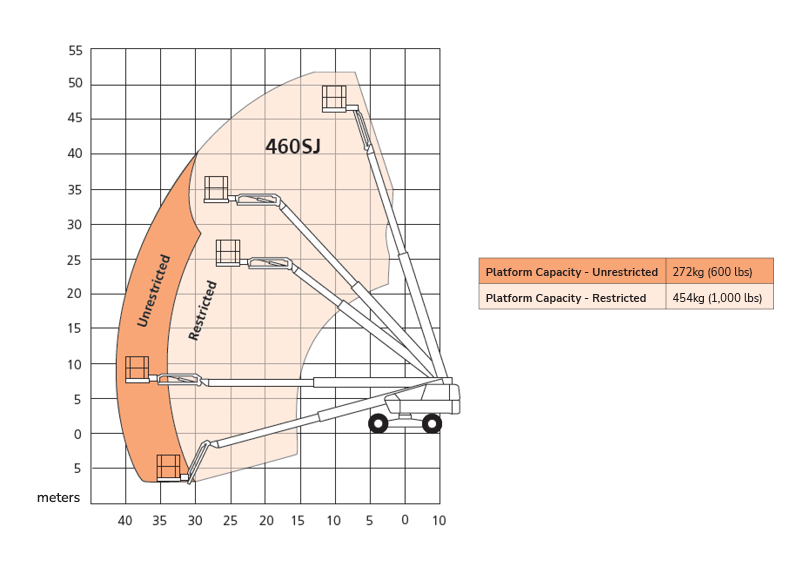

Working Envelope

Emea Metric 460sj 72dpi

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ireland provides nationwide coverage for any warranty or technical support required in Ireland. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
